Clever Flow Peristaltic Pump with Plastic Housing
MP110C | MP310C | MP610C (ABS Engineering Plastic Housing)
- 4.3″ LCD screen with clear, wide-angle display
- Touchscreen with keypad for easy, dual-mode control
- Includes Start/Stop, reverse, full speed, back suction, memory & direct flow/speed input
- Step-by-step calibration wizard for accuracy
- Smart temperature control adjusts cooling automatically
- WiFi connectivity for remote app control, alerts & tube replacement reminders

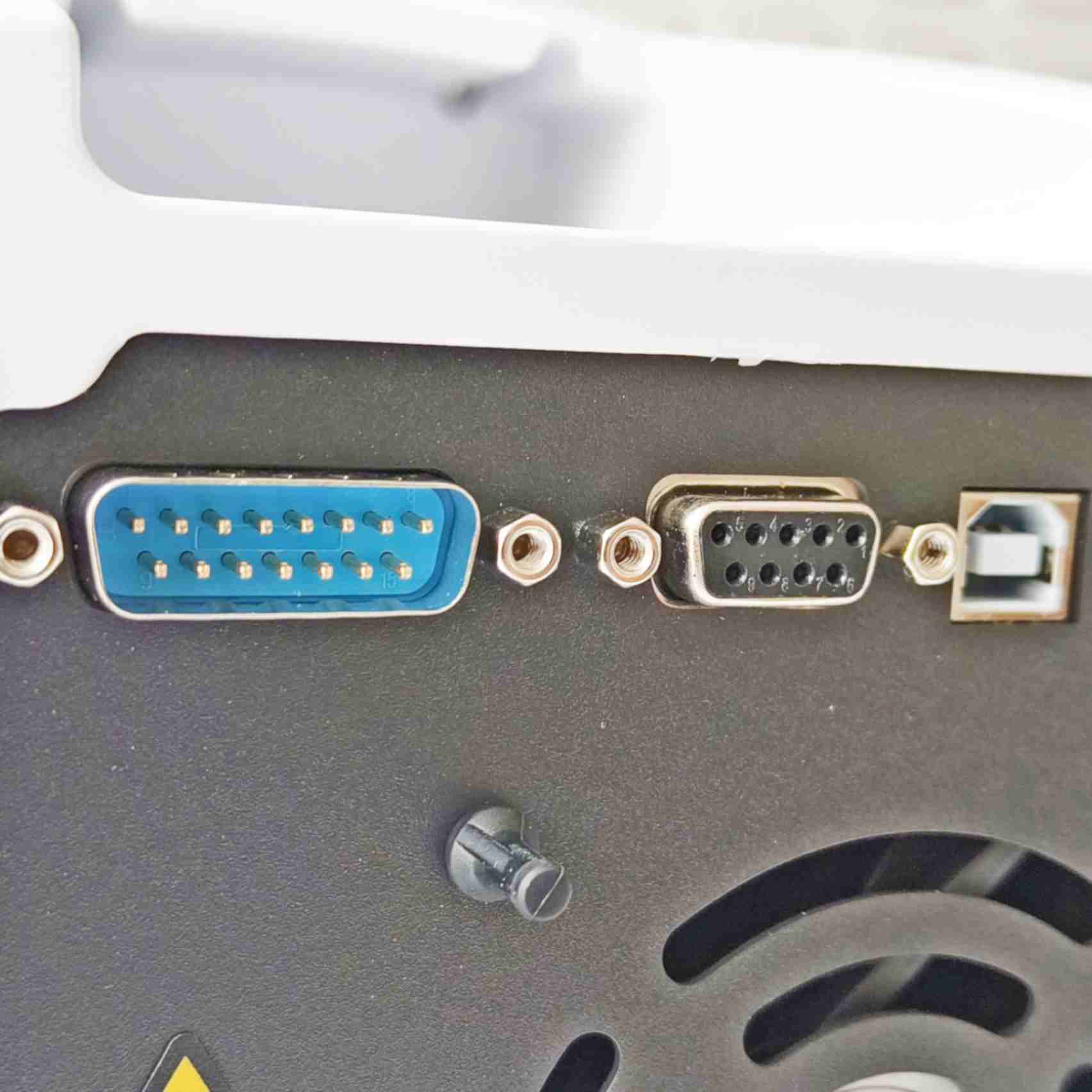

- External analog/digital controls with isolated signal inputs
- RS485 MODBUS support with 80+ programmable commands
Microlit Clever Flow Peristaltic Pumps are engineered for accurate liquid metering and dispensing, offering exceptional precision in flow control. Equipped with a larger, vibrant true-color LCD touchscreen, they provide enhanced visibility and intuitive operation. Advanced programming modes support complex experimental workflows, while RS485 communication ensures seamless integration with diverse control systems and devices.
For Model: MP110C
Flow Rate : 0.00011-750 ml/min, Speed Rate : 0.1~150 RPM,
Driver Weight : 3.6 kg, Power Consumption : <30W
For Model: MP310C
Flow Rate : 0.005-1750 ml/min, Speed Rate : 0.1~350 RPM,
Driver Weight : 3.9kg, Power Consumption : <40W
For Model: MP610C
Flow Rate : 0.005- 3000 ml/min, Speed Rate : 0.1~600 RPM,
Driver Weight : 3.9kg, Power Consumption : <50W

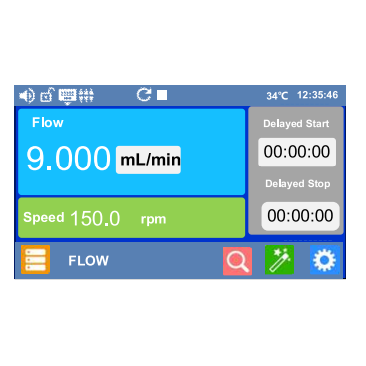

4.3-inch Color LCD Display
4.3-inch color LCD screen offers wide viewing angles and sharp, clear visuals for enhanced display quality in any lighting.
Comprehensive Control Functions
Includes essential functions such as start/stop, reversible flow, full-speed operation, back suction, and memory recall, with direct flow or speed input.
Effortless Calibration with Wizard-Style Flow Setup
Wizard-style flow calibration ensures quick, easy, and highly accurate setup for optimal performance.

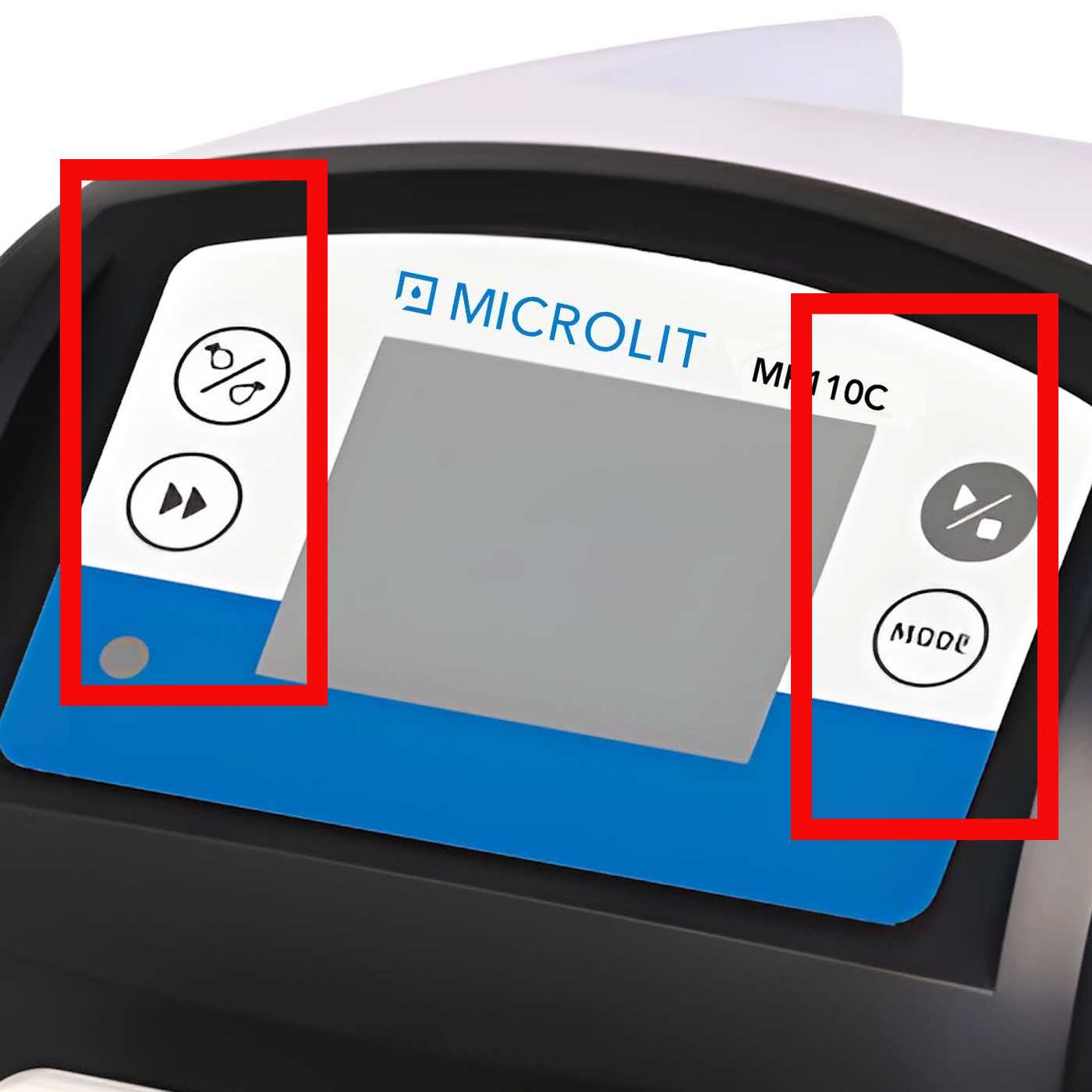

Intuitive Control with Touchscreen and Keypad Operation
Touchscreen and keypad operation together deliver a seamless, user-friendly experience, allowing for quick navigation, easy adjustments, and precise control of settings.
RS485 Communication with MODBUS Protocol
Enabling seamless integration with control systems and up to 80 programmable instructions for enhanced automation.

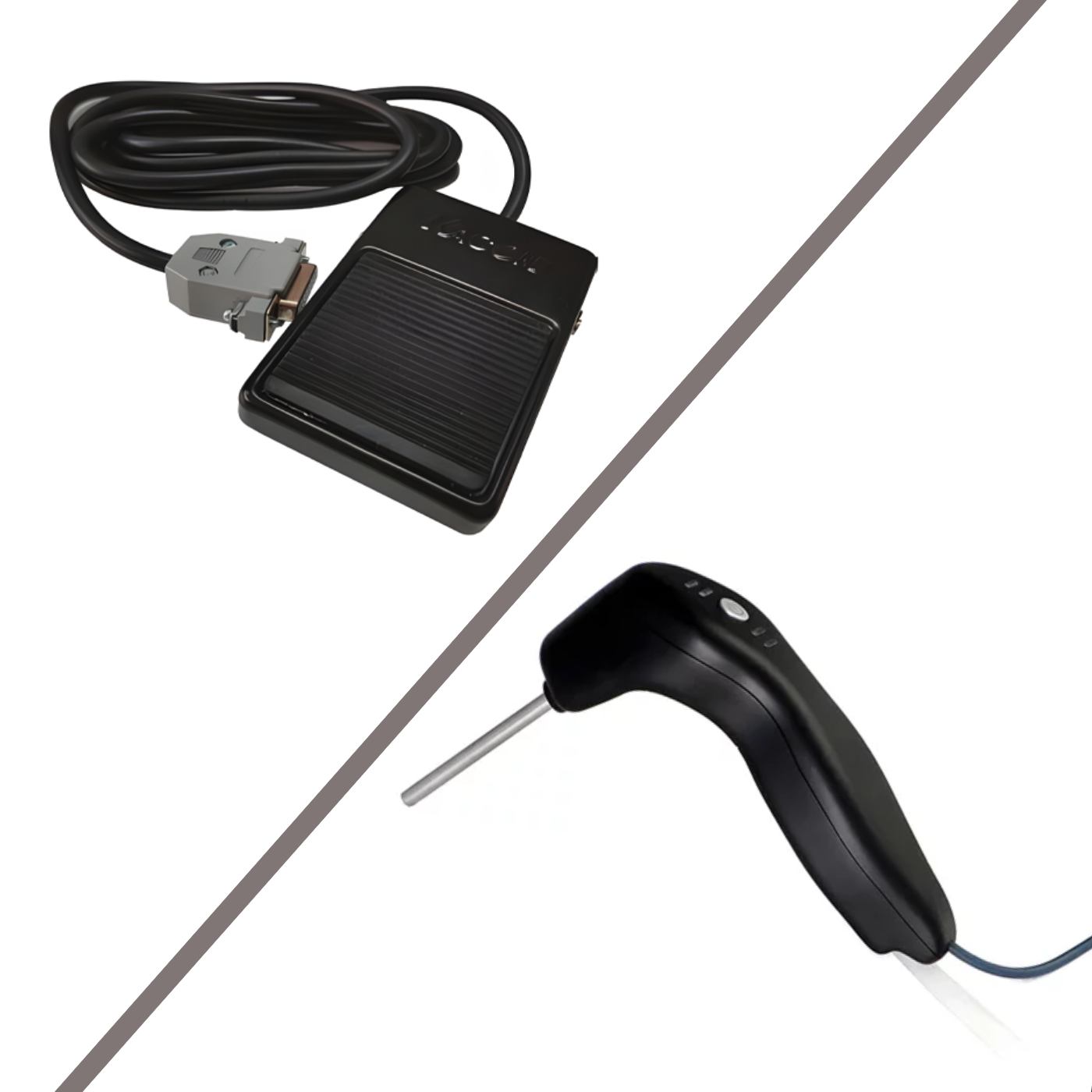

Accessories for Comfortable Control
Comes with optional accessories, such as a Foot Switch and Hand Dispenser, for convenient and comfortable dispensing control.
| Features | Description |
|---|---|
| Speed Resolution | 0.1RPM |
| Speed Accuracy | <±0.2% |
| Power Supply | AC 100~240V, 50Hz/60Hz |
| Power Consumption | <30W |
| External Control Interface | External control input level 5V, 12V (standard), 24V (optional), External control analog 0-5V (standard), 0-10V, 4-20mA (optional) |
| Communication Interface | RS485 communication interface, MODBUS protocol is available |
| Working Environment | Temperature 0 ~ 40°C, relative humidity<80% |
| IP Grade | IP31 |
| Dimension (L×W×H) | 258mm×180mm×197mm |
1960s with the release of Letraset sheets containing Lorem Ipsum passages, and more recently with desktop publishing software like Aldus PageMaker including versions of Lorem Ipsum.
| Accessories | Description |
|---|---|
 |

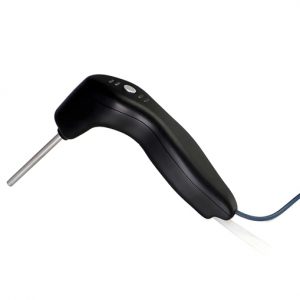

Hand Dispenser MP-HD
The hand dispenser is equipped with Microlit MP-HD series filling needles,making it ideal for manual and semi-automatic dispensing with a peristaltic pump. It features a comfortable grip, compact size, and lightweight design. |
 |
Footswitch MP-FS
Designed to work with Microlit’s full range of products, the footswitch controls the start and stop of the pump. It features a light-touch front-step design for clear feedback and anti-fatigue use. |
 |

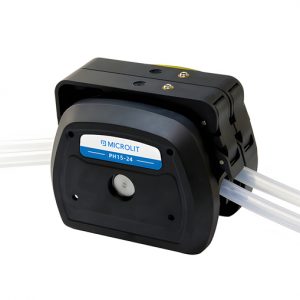

Pump Head PH15-24 | PH15-44 | PH 10-28
The PH series pump head is designed for small to medium flow, multi-channel fluid transmission, and is available in two versions, the PH10 and PH15, based on tubing size.It Offers a single-channel flow range of 0.00023 to 64 ml/min, compatible with tubing sizes 13# and 14#, with an inner diameter of 0.13 to 3.2 mm and a wall thickness of 0.8 to 1 mm. |
